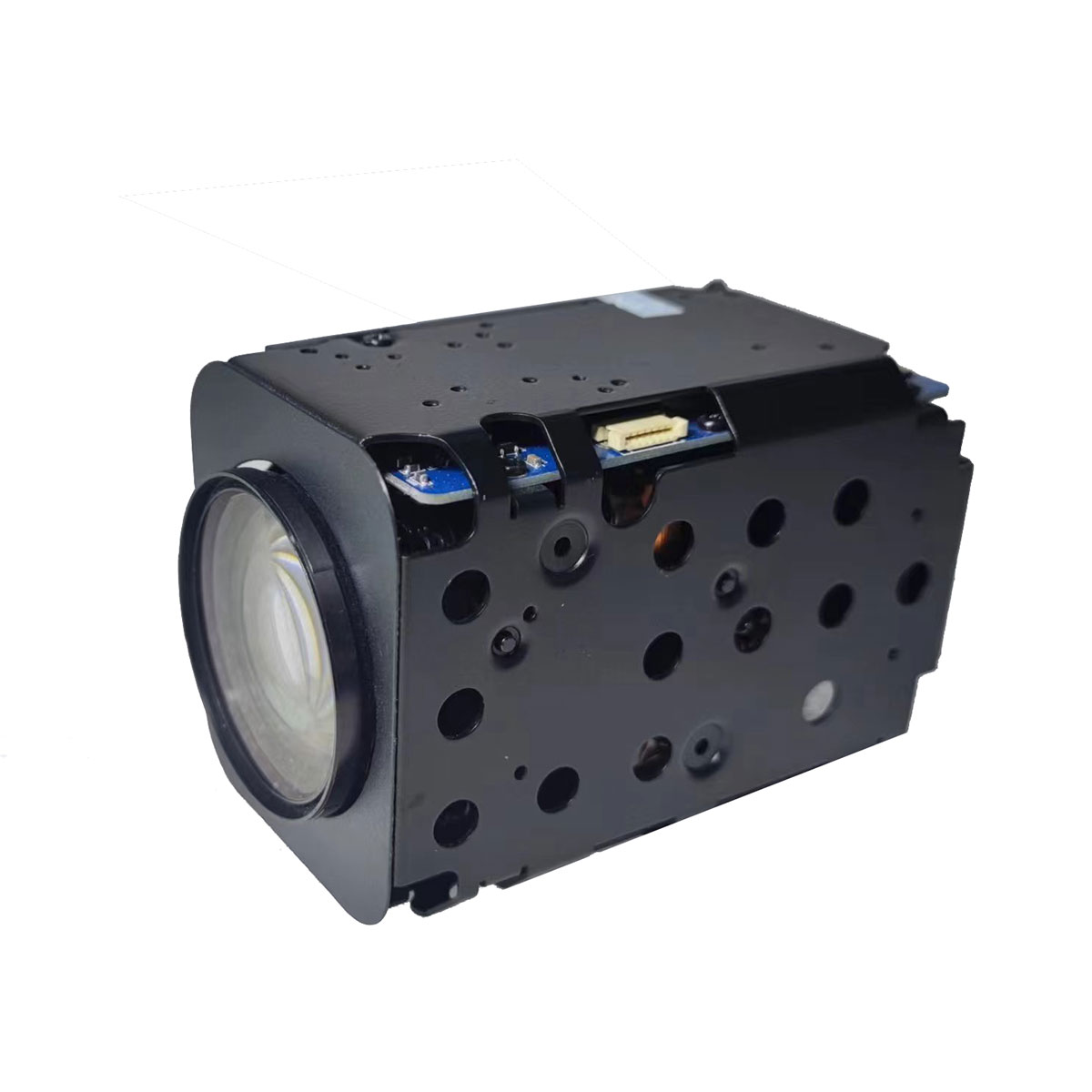

2MP 30X HD 줌 카메라 디지털 스타 라이트 모듈
  • 2MP 30X HD 줌 카메라 디지털 스타 라이트 모듈2MP 30X HD 줌 카메라 디지털 스타 라이트 모듈

2MP 30X HD 줌 카메라 디지털 스타 라이트 모듈

공장에서 2MP 30X HD Zoom 카메라 디지털 스타 라이트 모듈을 구매하도록 안심할 수 있습니다.
● 빠른 시작
● 초 낮은 대기 시간 30ms (60 fps 모드)
● 30 배 광학 줌, 32x 디지털 줌
● Sony7520 이동과 동일한 렌즈;
● Sony7520의 비슷한 크기;
● 30pin LVDS 커넥터, 소니 7520 커넥터를 핀으로 핀;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.3mm-129mm
● 디지털 소음 감소 (2 D+ 3D)
● 개인 정보 보호 마스크 기능
● 강한 조명 억제
● 모션 감지
● 안개 투명성
● Live, Peyco-D/P 프로토콜을 지원합니다
● 비디오 출력 : LVDS, EX-SDI (해외), CVBS

모델:STA-3023-D

문의 보내기

제품 설명

● Fast startup
● Ultra-low latency 30ms (60 fps mode)
● 30x optical zoom, 32x digital zoom
● Same lens as Sony7520 movement;
● Comparable size to Sony7520 movement;
● 30Pin Lvds connector, Pin to Pin Sony 7520 connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.3mm-129mm
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, EX-SDI (Overseas), CVBS

2MP 30X HD Zoom Camera Digital Starlight Module Functional features

● Support the power-off state memory function
● Support timing and event graphics and other functions
● Support for mobile / cross-border detection, area intrusion and other functions
● Support three-code flow technology, each code flow can be configured independently
● Supports 500 preset bits, 8 cruise scanning
● Supports timing task preset points, (pattern, cruise, left and right) scanning
● Support 1 audio input / output and 1 alarm input / output
● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions

Specification parameters

model STA-3023-D

Movement parameters
Sensor type 1/2.8" Panasonic CMOS
Effective pixel 235 million
minimal illumination Color: 0.02 Lux; black and white: 0.001 Lux
noise-signal ratio >50dB
Day and night switching mode Automatic ICR filter switch, automatic, color, black and white

Lens parameters
focal distance And f =4.3-129mm ,30 x optical changes and 32 x numbers
iris diaphragm Maximum aperture: F 1.6 to F 4.7
shutter 1/25 sec to 1/30,000 sec; slow shutter support
Horizontal field of view angle 65.1-2.34 degree (wide Angle-looking far)

image parameter
resolution ratio 50/25fps (1920 × 1080,1280 × 720);
60/30fps (1920 × 1080,1280 × 720);
Focus mode Automatic focus / manual focus / one-click automatic focus
Strong light inhibition support
Privacy block Support 24 regions
Mobile detection Support 3 regions
3D & 2D for noise reduction support
Through the fog support
Baud rate 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
access protocol VISCA / PeIco-D / PelcoP / Update
language English / simplified Chinese / Traditional Chinese / Japanese
standard NTSC / PAL

interface parameters
video monitor 525 vidicon video out LVDS, EX-SDI,CVBS

general requirements
Operating temperature and humidity -30℃~60℃, humidity less than 90% (no condensation)
power suppl DC 9V-15V ,500MA
size 88*50*60mm
weight 240g

If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, and the details are subject to the physical object.

Overall dimension
